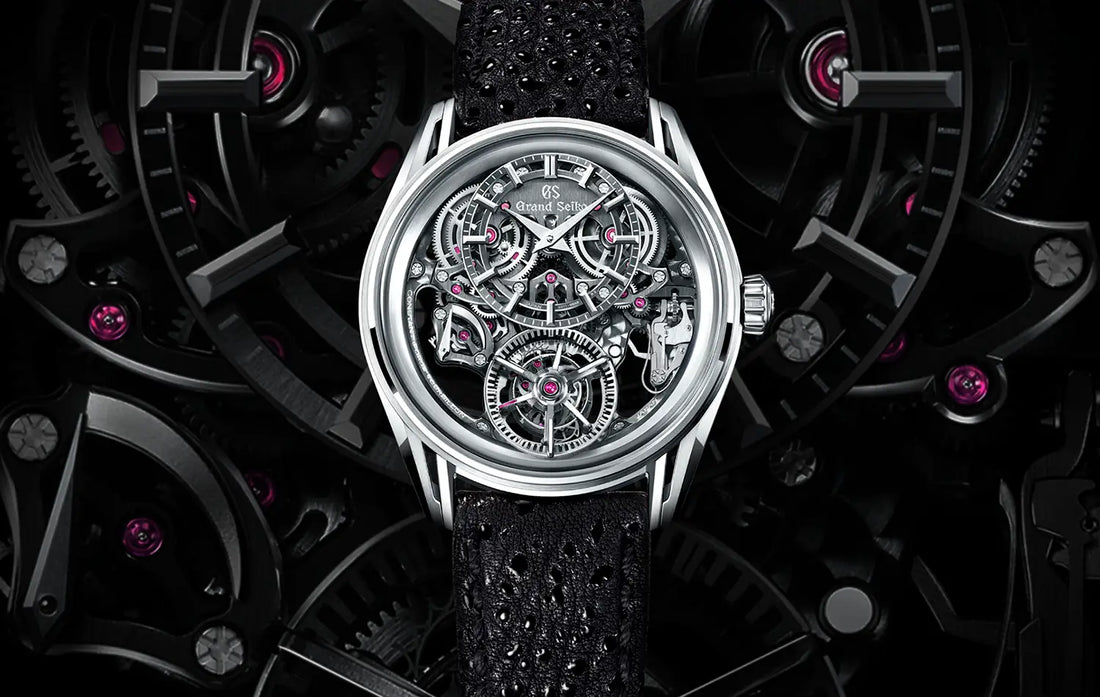

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.

Today marks a new milestone in the sixty-two year history of Grand Seiko with the introduction of the brand’s first mechanical complication watch, the Grand Seiko Kodo Constant-force Tourbillon. At its heart is a uniquely innovative movement that delivers a level of stable accuracy unprecedented for Grand Seiko by combining a tourbillon and a constant-force mechanism as one unit on a single axis for the very first time in horological history.

The watch is named Kodo, the Japanese word for heartbeat. With its unique appearance when in motion and with its carefully designed sound, this revolutionary watch reveals its vitality both audibly and visually, thanks to the open-work design and the sapphire case back.

Most remarkable of all is the way that the constant-force mechanism and the tourbillon have been integrated together to allow the creation of an overall design that is perfectly in harmony with the values of Grand Seiko and whose technical ingenuity is encased in a watch of great elegance and wearability.

The Grand Seiko Kodo will be available as a limited edition of twenty in October 2022.

From concept to reality

In 2020, Grand Seiko introduced the “T0 Constant-force Tourbillon”, a concept movement which incorporated this patented mechanism. To bring the concept to life in a finished watch required the complete dedication of a team comprising designers, engineers and craftsmen and women entrusted with the assembly and finishing of the movement and the case. Each and every one of the 340 components of the caliber was re-examined, and, where necessary, re-designed and re-engineered for production. The result is Caliber 9ST1. Not only is Caliber 9ST1 smaller than its concept movement predecessor but its high accuracy remains stable for longer thanks to the constant-force mechanism. Furthermore, Caliber 9ST1 sets a new standard of accuracy, in which each movement is tested for a full 48 hours in each of six positions and at three temperatures. This is twice as long as the Grand Seiko and industry standard. Each movement is assessed over the course of 34 days to verify its accuracy, and when the tests are completed and this new standard has been met or exceeded, the performance characteristics of each movement are defined in the individual certificate provided with every watch.

From the inception of the project to the realization of Kodo in its finished form required ten years of skill, dedication and hard work.

Innovation in precision, beauty and sound

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.
Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.
The constant-force carriage (left) and tourbillon carriage (right) are integrated together.

Caliber 9ST1 is complex in its engineering and design but is based on the simple insight that the integration of a constant-force mechanism and a tourbillon as one unit on a single axis would deliver practical benefits. Because there are no wheels or other components between the two mechanisms, there is no loss or change in the torque transmitted from the constant-force mechanism to the balance wheel. This leads to an increased duration of 50 hours for the constant-force mechanism and a more stable amplitude of the balance. Together, these characteristics deliver the very stable accuracy of the movement. In addition, and crucially for Grand Seiko, the volume of the movement could be reduced, allowing the aesthetics of Grand Seiko to be respected and the watch to be eminently wearable and perfectly comfortable on the wrist.

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.
The integration of the two mechanisms allows the optimum use of space.

The integration of the two mechanisms creates a dazzling visual effect. The inner tourbillon carriage rotates smoothly as the balance steadily vibrates at 8-beats per second and the outer constant-force carriage follows its rotation at exact one-second intervals. The sounds of the escapement and of the once-per-second impulse of the constant-force mechanism harmonize with this regular visual rhythm to create, for both the eye and the ear, a deeply satisfying and re-assuring heartbeat. There is a powerful yet gentle charm to the sound that is set to a 16th note or semi-quaver which is made possible by 9ST1 being the movement with the highest frequency* ever to incorporate a constant-force mechanism.
*as of February 2022, based on Grand Seiko’s research.

While this remarkable watch is in every way a new departure for Grand Seiko’s watchmaking, the practicality for which Grand Seiko is renowned is still fully realized in every detail. The constant-force carriage has a ruby on one of its arms, which acts as a small seconds hand. The watch incorporates a hacking function so that the rotating tourbillon carriage can be stopped when the crown is pulled out, allowing the time to be adjusted to the precise second. The hour hand has an extra facet at its tip to enhance its readability. In addition, Kodo offers 10 bar water resistance.

Light, shadow and space

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.
The sapphire crystal case back reveals the beauty of the movement’s finishing and its intricate construction.

Thanks to the integration of the two key mechanisms, Caliber 9ST1 has room to breathe within the case and there is sufficient space for light to penetrate, through both the front and back of the case, revealing the beauty of the hand finishing. For the same reason, the delicate interplay of light and shadow that is central to the Grand Seiko aesthetic is there to be enjoyed in the subtle shade gradations, angles and textures. Each major component is painstakingly finished by hand using a variety of techniques to endow the overall movement with the quiet yet enduring sparkle that is the hallmark of Grand Seiko.

The case is constructed from both Platinum 950 and Grand Seiko’s Brilliant Hard Titanium to achieve a long-lasting beauty. Some case parts of both materials are Zaratsu polished and others have a hairline finish; both processes are completed by hand by highly skilled craftsmen and women to ensure that, from every angle, a visually pleasing harmony is revealed. The two case materials combine most evidently at the tapered end of the lugs where a small open space between each lug adds a lightness and unique aspect to the overall design.

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.
Grand Seiko’s expertise in hand polishing is evident in the way that the Platinum 950 and Brilliant Hard Titanium surfaces are perfectly harmonized.

The watch is offered with a calf strap specially treated in the same traditional way as was used to create the high-durability material once used in the armor of Samurai. The strap’s surface is painted by hand with Urushi lacquer in a multi-coating process that gives the strap a delicate sheen. The watch also comes with an alternative crocodile strap.

A new studio at the heart of Ginza

Grand Seiko’s first mechanical complication combines a constant-force mechanism and a tourbillon as one unit on a single axis.

The watch was designed by an elite group of Grand Seiko’s watchmakers and designers who will be a part of the new studio, the Atelier Ginza, to be situated in Ginza, Tokyo, where Kintaro Hattori started his business in 1881. The studio’s aim is to create truly unique watches that reflect the determination of Kintaro that his company should always strive to make the world’s finest watches.

With the creation of the Grand Seiko Kodo and the establishment of the Atelier Ginza, Grand Seiko has created a new stage on which, in the years to come, a new future will be built.
